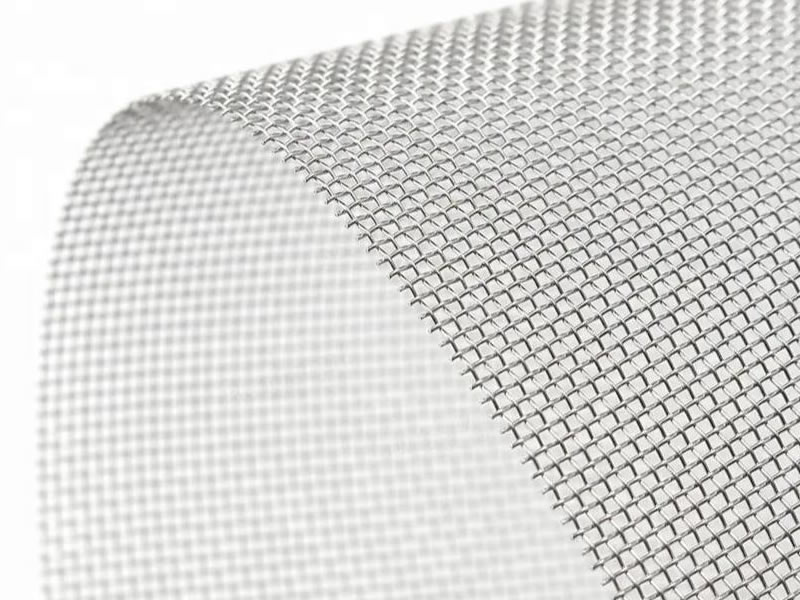

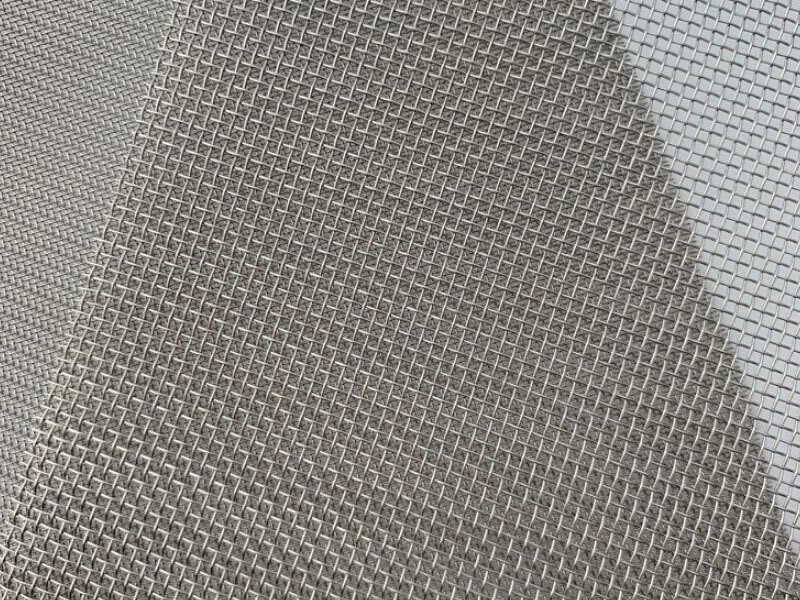

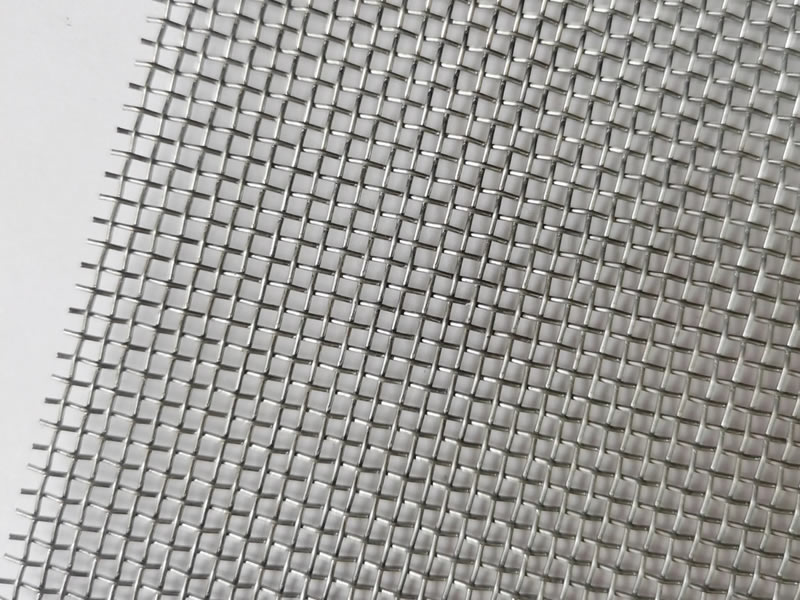

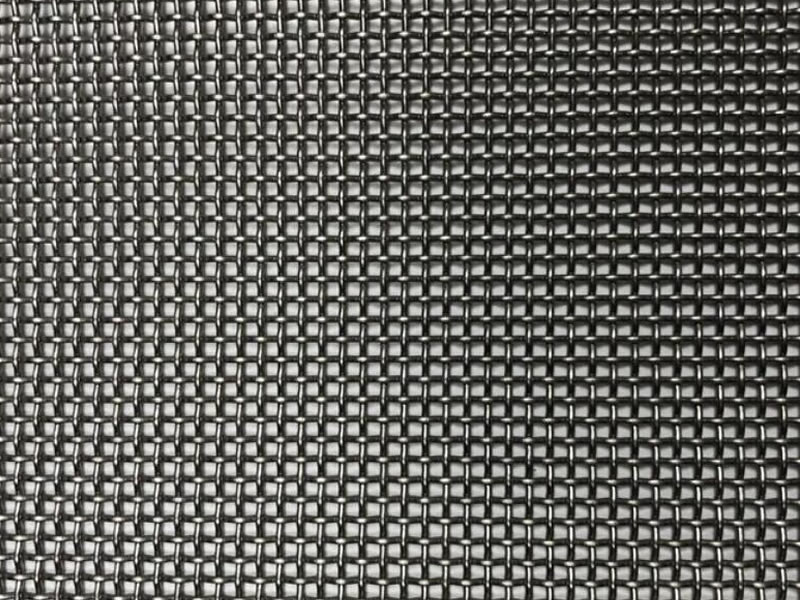

Stainless Steel Wire Mesh Plain Weave Pattern
Plain weave stainless steel mesh, characterized by its uniform weave pattern where each weft wire alternately crosses over and under each warp wire, boasts evenly spaced openings, offering simplicity and uniformity. Widely utilized for filtration, screening, sieving, and separation, this mesh provides notable stability, strength, and visibility, along with efficient liquid and gas flow, enhancing its suitability for various separation processes. Renowned for its excellent corrosion resistance, durability, and ability to withstand harsh conditions and chemical exposure, it ensures durability and longevity in applications where these attributes are paramount. Available in various mesh sizes and stainless steel grades like 304, 316, and 316L, each tailored for specific application requirements, it stands as a versatile, reliable material employed across diverse industries for functions ranging from filtration and protection to decorative purposes.
Specifications:
When contemplating the specifications of plain weave stainless steel mesh, a variety of factors come into play to ensure it is apt for a myriad of applications across several industries. Let's delve deeper into the precise specifications:
- Wire Diameter: The wire diameter typically ranges from fine to medium, with precise dimensions tailored to ensure optimal tension and mesh stability across applications.
- Mesh Count: This indicates the number of threads per inch, and in plain weave stainless steel mesh, this might range widely to accommodate different levels of filtration and material flow. Common mesh counts might range from a fine 100 x 100 mesh to a coarser 10 x 10 mesh, dependent on application needs.
- Weave Pattern: The hallmark of plain weave mesh lies in its simple weaving pattern where each weft wire crosses alternately above and below each warp wire, providing a uniform and stable structure with evenly spaced openings.
- Opening Size: Opening sizes in the mesh correlate with the mesh count and wire diameter. Finer meshes will naturally have smaller openings, ideal for precise filtration and screening of smaller particles, while coarser meshes facilitate the swift passage of materials.
- Material Grades: Available in different grades of stainless steel, such as 304, 316, and 316L, each version caters to various application requirements by offering distinct properties in terms of corrosion resistance, strength, and thermal resistance.
- Tolerance: Precision is pivotal in ensuring the efficiency of the mesh, thus our manufacturing maintains a stringent tolerance level, ensuring consistency and reliability in all our mesh products.

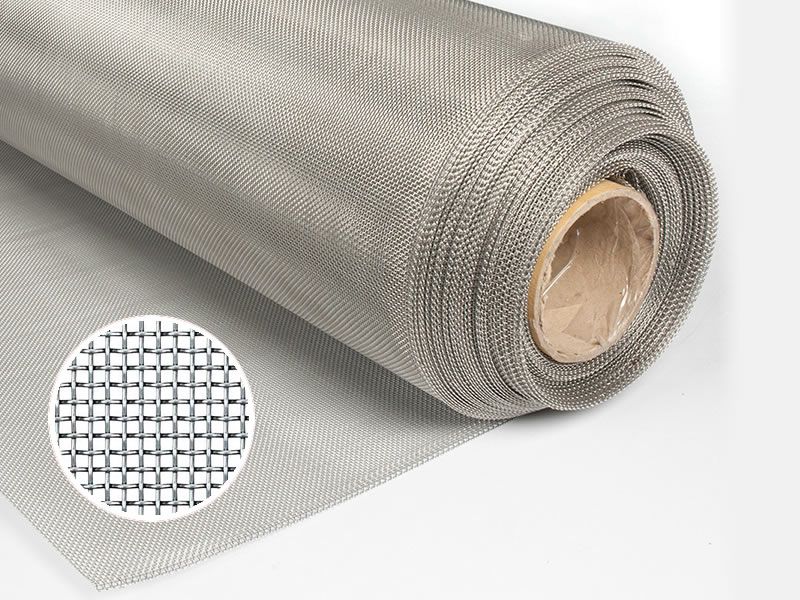

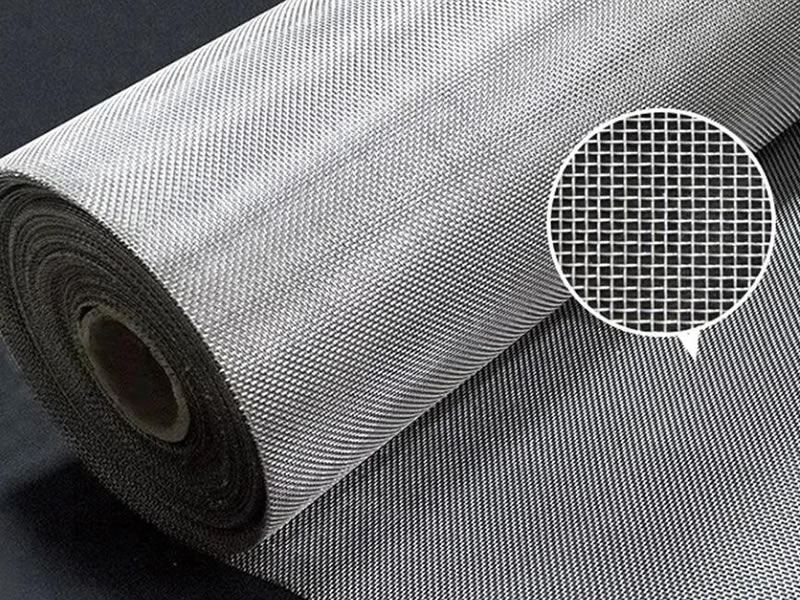

- Roll Size: The mesh can be availed in various roll sizes, with widths and lengths adaptable to specific user requirements, ensuring minimal wastage and ease of use in diverse applications.
At the core of these specifications lies our commitment to quality and precision, ensuring that every inch of our plain weave stainless steel mesh embodies reliability and efficiency. Through meticulous crafting and rigorous quality checks, we ensure that all these specifications not only adhere to but often surpass industry standards, providing you with a product that stands unwavering in the face of your operational demands.
Stainless Steel Wire Mesh Plain Weave Pattern
| MESH/Diameter | WİDTH LENGTH | MATERIALS |
| 4 mesh 1,00mm | 1*30mt | 304 |
| 5 mesh 1,00mm | 1*30mt | 304 |
| 6 mesh 1,00mm | 1*30mt | 304 |
| 8 mesh 0,65mm | 1*30mt | 304 |
| 10 mesh 0,57mm | 1*30mt | 304 |
| 12 mesh 0,47mm | 1*30mt | 304 |
| 14 mesh 0,47mm | 1*30mt | 304 |
| 16 mesh 0,47mm | 1*30mt | 304 |
| 18 mesh 0,47mm | 1*30mt | 304 |
| 20 mesh 0,20mm | 1*30mt | 304 |
| 20 mesh 0,35mm | 1*30mt | 304 |
| 25 mesh 0,35mm | 1*30mt | 304 |
| 30 mesh 0,30mm | 1*30mt | 304 |
| 30mesh 0,40mm | 1*30mt | 304 |
| 35 mesh 0,22mm | 1*30mt | 304 |
| 40 mesh 0,22mm | 1*30mt | 304 |
| 50 mesh 0,18mm | 1*30mt | 304 |
| 60 mesh 0,14mm | 1*30mt | 304 |
| 70 mesh 0,12mm | 1*30mt | 304 |
| 80 mesh 0,12mm | 1*30mt | 304 |
| 90 mesh 0,10mm | 1*30mt | 304 |
| 100 mesh 0,10mm | 1*30mt | 304 |
| 120 mesh 0,09mm | 1*30mt | 304 |
| 150 mesh 0,06mm | 1*30mt | 304 |
| 180 mesh 0,05mm | 1*30mt | 304 |
| 200 mesh 0,05mm | 1*30mt | 316 |
| 250 mesh 0,04mm | 1*30mt | 316 |
| 300 mesh 0,04mm | 1*30mt | 316 |
| 325 mesh 0,04mm | 1*30mt | 316 |
| 400mesh 0,03mm | 1*30mt | 316 |
| 500 mesh 0,025mm | 1*30mt | 316 |
| PLAIN DUTCH WEAVE MESH | ||
| 12*64 0,58mm*0,43mm | 1*30mt | 304 |
| 50*250 0,14mm*0,11mm | 1*30mt | 304 |
| 24*110 0,35mm*0,25mm | 1*30mt | 304 |
| STAİNLESS STEEL WİRE | ||
| 1,50mm(for weaving) | 304 | |
| 2,00mm(for weaving) | 304 | |
| 2,50mm(for weaving) | 304 | |
| 3,00mm(for weaving) | 304 | |
Use
Plain weave stainless steel mesh, with its characteristic uniform and stable weave pattern, has been a preferred choice across various industries due to its notable qualities such as durability, corrosion resistance, and consistent opening sizes. The detail regarding its uses in diverse fields is as follows:
- Fine Particle Filtration: The mesh's consistent openings make it ideal for filtering fine particles in industries such as pharmaceuticals, food & beverage, and chemicals.
- Liquid Filtration: Implemented in water treatment plants and various liquid filtration units to ensure the removal of impurities and unwanted particles.
- Particle Separation: Widely used in mineral processing and milling operations to separate particles based on size.
- Safety Screening: Employed to prevent foreign particles from contaminating products during manufacturing processes.
- Window Screens: Owing to its durability and resistance to external elements, it is used for window screens to provide security without obstructing visibility.
- Fencing: Used as fencing material in certain secure spaces due to its stability and robustness.
- Animal Enclosures: Utilized for creating enclosures and cages for small animals, providing them with a safe and ventilated environment.
- Crop Protection: Used to create barriers or covers to protect crops from pests and small animals without hindering sunlight.
- Interior Design: Adopted in interior design for aesthetic applications, including partitions, decorative panels, and railing infill panels.
- Exterior Facades: Used in external building facades to provide a modern aesthetic while also serving practical purposes like sun screening.
