Stainless Steel Welded Wire Mesh 304,316 Panels and Rolls

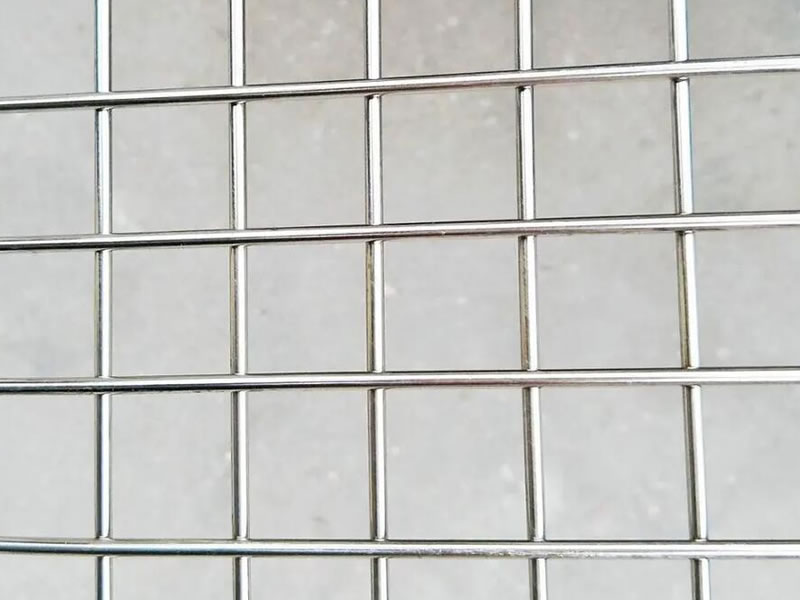

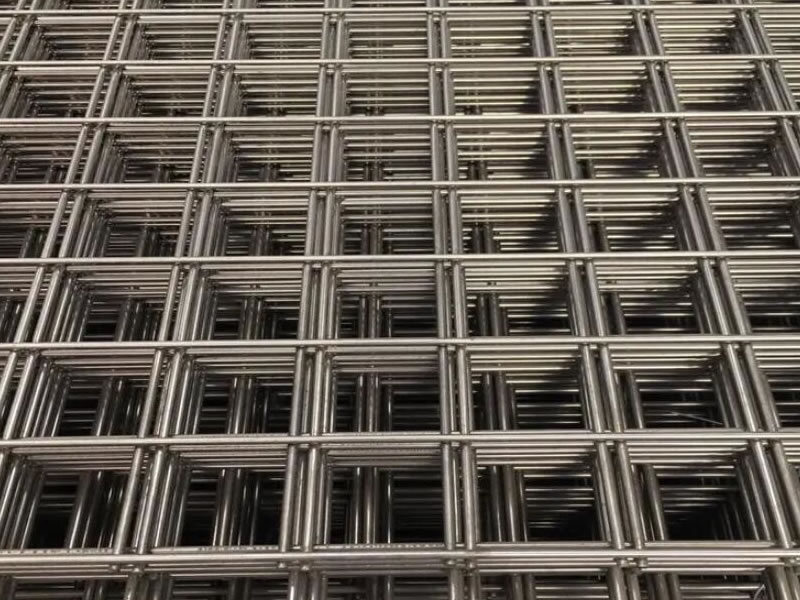

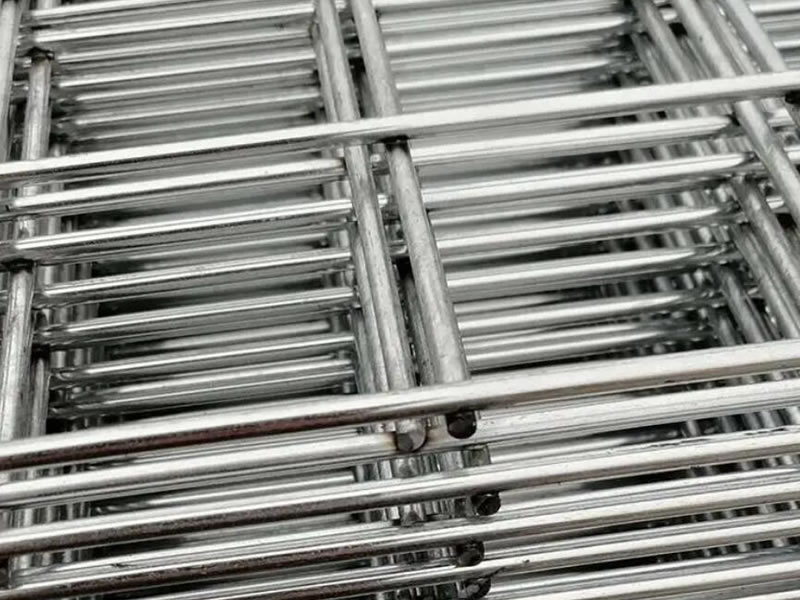

Stainless steel welded mesh is a type of wire mesh that is made from stainless steel wires. It is created by welding together the intersecting wires at their contact points, forming a grid-like pattern. This welding process provides the mesh with enhanced strength and structural stability.
Stainless steel welded mesh offers excellent corrosion resistance, durability, and strength. It can withstand harsh environments, high temperatures, and exposure to chemicals without rusting or corroding easily. This makes it suitable for a wide range of applications.
The welded mesh pattern provides a strong and secure barrier, making stainless steel welded mesh ideal for applications such as fencing, security enclosures, animal cages, and reinforcement in concrete structures. It can also be used for filtration, screening, and separation processes.
The mesh size or openings can vary depending on the specific requirements of the application. Stainless steel welded mesh is available in different grades of stainless steel, such as 304, 316, and 316L, each with its own specific properties and corrosion resistance levels.
Stainless steel welded mesh is a versatile and reliable material that offers excellent corrosion resistance, durability, and strength. It is widely used in industries such as construction, agriculture, manufacturing, and transportation.
Popular Stainless Steel 304 Welded Wire Mesh
- 3/4" opening welded wire mesh rolls
3/4" opening square mesh welded
Stainless steel wire: 16 gauge,18 gauge,19 gauge
Mesh roll in a width of 24-36" - 304 Grade stainless steel wire welded wire mesh
Roll width 2.50 meters. Opening size 6.4mm x 6.4mm, made of 22 wire diameter. - This size can be made into galvanized finish:
Galvanized steel wire welded wire mesh, electric galvanizing:
Opening size: 6.4mm x 6.4mm, wire diameter 22. - Electro welded stainless steel wire mesh with the following specs:
1 inch x 1 inch square mesh
Wire gauge: 19 BWG (1.06 mm in diameter)
Material: 304 grade

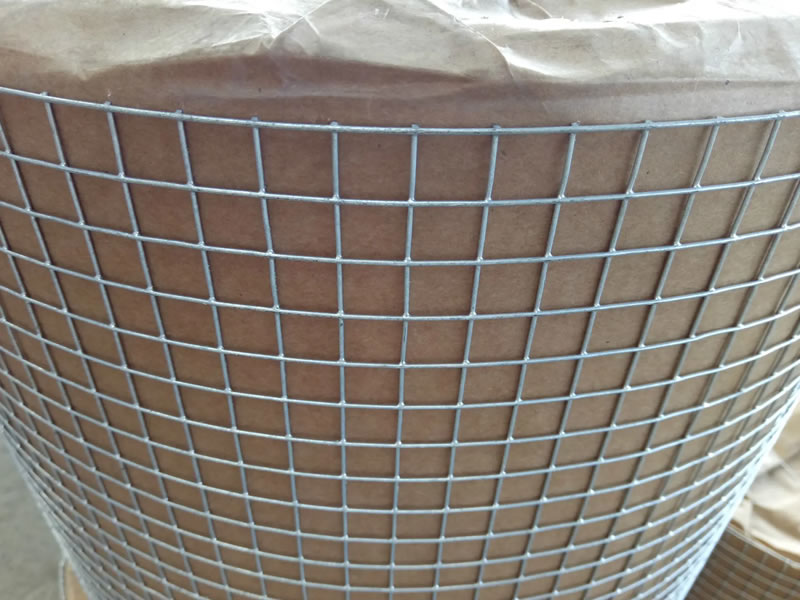

In rolls of 40"x100' - 3/4 x 3/4" welded stainless 304 mesh
Details: 0 .063(1.6mm) wire. opening .687"(17.4mm)
Dimensions: 5.5"(7 squares) x 11.5"(15 squares). - Rolls of 4'x100' Welded Wire Mesh
Details: 1x1 mesh
Material: 304 Stainless
Wire diameter: 0. 063"

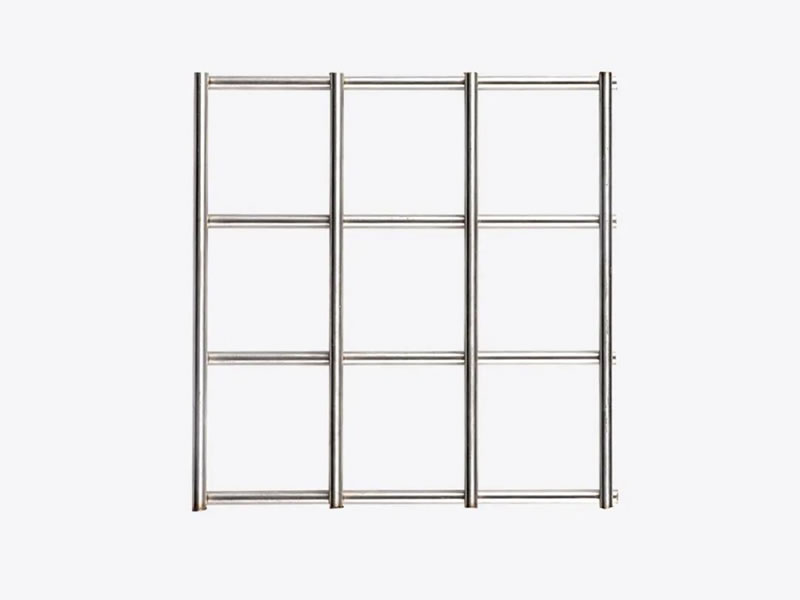

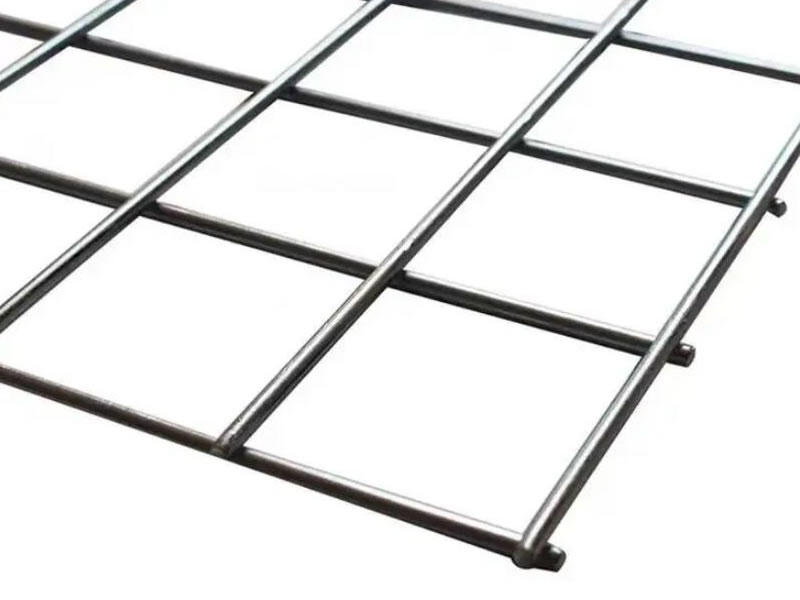

Welded Wire Mesh can be supplied in cut panels:
Panels of welded wire mesh as follows:
- Material: Stainless Steel type 304
Gauge: 16 gauge (0.063")
Pitch: ½" x ½"
Panel size: 16.5" x 16.5" nominal.
Panels to be cut with a smooth finish. - Stainless steel welded wire mesh cut into panels for processing of cages:
Square hole: 1/2"x1/2" opening
